Introduction and Description: The Ultimate Belt Loop Extender (UBLX)

Beginnings, History of my Belt Loop Extenders:

 Decades ago, one of my early locking sheath users was a United States Navy Seabee. He loved the tactical sheath I made for his knife, but because he was onboard ship, he didn't like the position of the sheath on his belt. He wanted it to ride lower on the belt, with the handle below the belt line, like a lowered holster for a firearm. He devised his own crude idea of this with military MOLLE webbing and duct tape (yes, duct tape) to illustrate the idea for me, and I went to work. This was the birth of the very first belt loop extender.

Note: my earliest belt loop extenders are described on a special archival page on the website at this link.

In the firearms world, a belt loop extender arrangement is called a "drop holster," because it drops the firearm to a lower position. Dropping even lower and it becomes a "leg holster," or a "drop leg holster." The holster itself may lower and position the firearm, or it may have webbing or textiles to do the job. In choosing the name for this device, it was clear to me that it extends the belt loop to a lower position. This is why I use the name "Belt Loop Extender."

No matter what you call it, a drop leg sheath, or a thigh sheath, it's not the actual sheath that lowers the knife to a location below the belt loop; it's a specialized piece of gear made of webbing, high strength reinforcement, acetyl thermoplastic, and metal. Since I use a universal locking sheath or hybrid-tension locking sheath, or tab-lock sheath, I design and offer the accessory to lower the position of the knife. This is my belt loop extender, or BLX.

A simple belt loop extender only does that, lowers the sheath position. Right away, I realized that simple belt loop extenders weren't enough, that the extender could offer other features, such as a place to nest a diamond pad sharpener and a web pocket for the LIMA flashlight. This was the beginning of my "Ultimate Belt Loop Extender," which comprises most of the extenders I make and is tagged: UBLX.

I also offer even longer, lower extenders. These are not just for very large knives; I've learned from US Marines that a lower position on the thigh is often the most convenient place to wear even smaller fixed blade knives. So I offer EXBLX, the Extra length Belt Loop Extenders which have anchor straps around the thigh, just above the knee.

A new addition to this idea is my Modular Sheath Frame System (MSFS), which has a modular, changeable sheath frame and is quickly adapted to a variety of wear options, the UBLX being just one of them. I'll cover that on a different page of the site.

This page is all about the UBLX, and the EXBLX, accessories that lower my knife sheaths to a "below the belt" position.

Page Topics

Design, Materials, and Construction

I hand-make all of the physical working, mounting, hardware, and wearing components of my accessories in my shop-studio. I farm nothing out. Like all of my custom tactical knife gear, the entire belt loop extender is custom-made to fit each individual knife. Some of my accessory gear (sharpeners, flashlights, magnesium firestarters) are separate components and have somewhat universal fittings on all my knife sheaths. However, like the sheaths, the UBLXs won't fit other knives; the UBLXs are custom-made to fit one individual knife and sheath combination.

One of the main reasons for this is that because each knife is different, so is the size and shape of the sheath. This means that the bolt pattern, distance to the top of the knife butt (when sheathed) and widths are all different. So each UBLX must be made to match-fit a single knife/sheath combination.

I make the UBLX web frames in nylon or polypropylene, and stitch them with very heavy polyester thread with professional machine stitching. I have five dedicated machines to do these jobs. The hook and loop (Velcro®) retainer pads are adhesive and cross-stitched. There is a "drop" area, where the actual extension of the web between the loop for the belt and the top of the sheath is located. In older/earlier models, I heavily zigzag-stitched this area to stiffen it. In the newer models, I insert a piece of acrylic stiffener to stop this area from collapsing or folding as the knife is pulled up and out of the sheath. The acrylic stiffeners are lightweight, waterproof, and permanently mounted within the webbing. All metal parts, if applicable, are stainless steel, and all plastic buckles and hardware, if applicable, are acetyl .

Acetal plastic, also called polyacetal and polyoxymethylene (POM), with the tradename Delrin, is a general purpose, semi-crystalline, engineered thermoplastic. Acetal is commonly used for parts that need to be very stiff, have low surface friction and good dimensional stability. Dimensional stability is the ability of a plastic part to maintain its original dimensions when it is exposed to changes in temperature and humidity. This plastic is so durable, it's used to make plastic machine gears, and it's food and safety compliant.

Describing the UBLX may seem a bit complicated, but I assure you that the device is extremely simple and intuitive when you have it in your hand. I've made many dozens of these for decades, and never had a complaint about a single one.

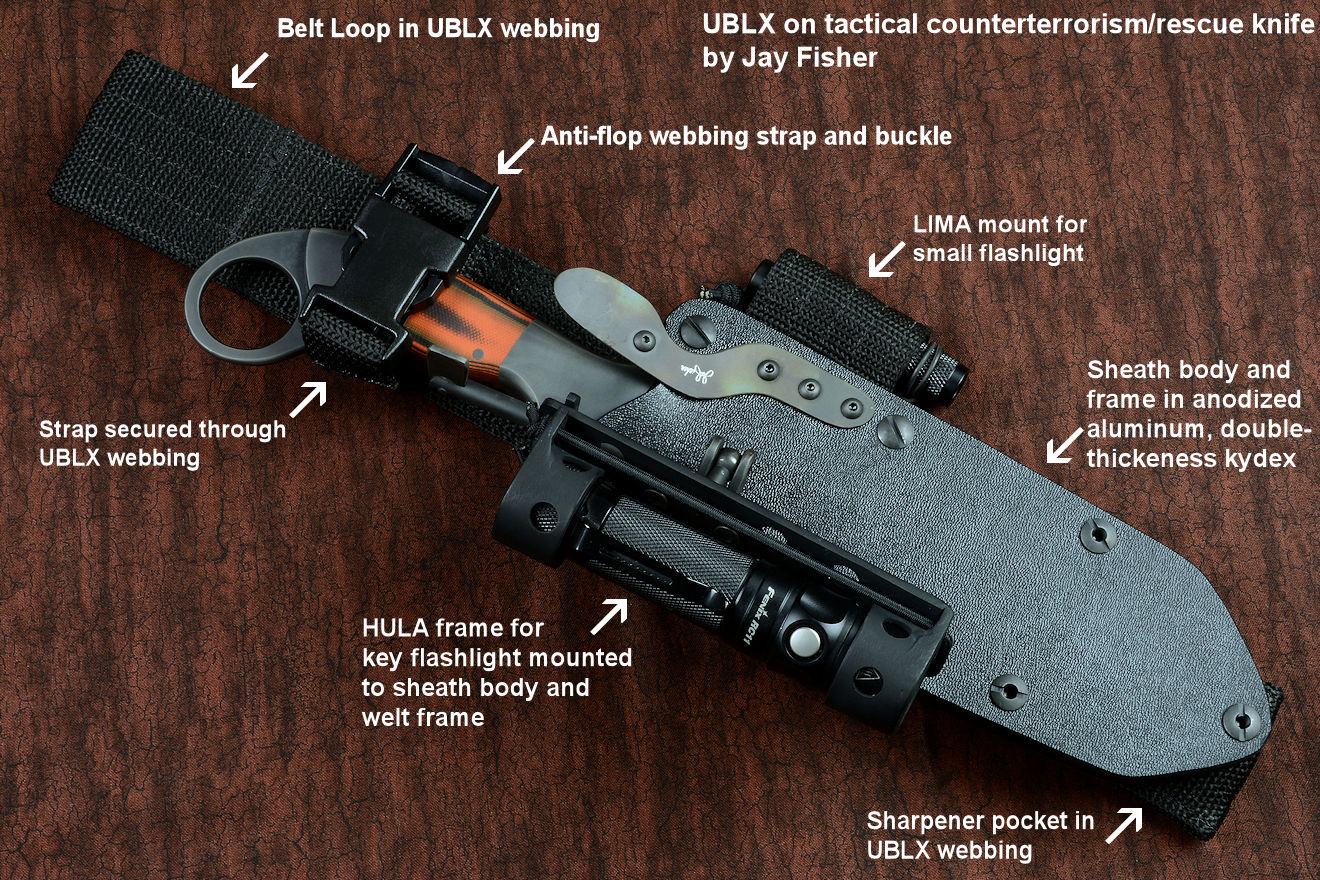

The UBLXs have a T-strap design of two main parts (see the annotated photos below):

1. There is a 2" wide vertical riser that has the loop that the belt is threaded through, and mounted to the vertical riser is the anti-flop shock cord or strap. The purpose of the anti-flop cord or strap is to trap and pull the handle toward the leg, otherwise the handle of the knife will "flop" around while active (think running or climbing). The anti-flop shock strap does not secure the knife in the sheath—the sheath itself does that—whether it's a locking sheath, hybrid-tension-locking sheath, or tab-lock sheath. My earlier models of belt loop extender have a bungee-elastic strap (ocky strap) that is secured around the knife handle with a dot snap. My later models have a 1" wide nylon or polypropylene web strap secured by an acetyl buckle for adjustment and longevity. In the vertical component, at the bottom of the UBLX is usualy a sharpener pocket. This houses a folding diamond pad sharpener, just right for small touch-ups of the knife blade cutting edge.
2. The 2" wide horizontal strap has several functions. It physically supports the mounting straps, which are 304 stainless steel or anodized aluminum. The stainless is flat and non-reflective, and/or oxide-blackened or matched to the gear. The coyote-brown rigs have a dark, straw-brown non-reflective finish. The horizontal strap is heavily wrapped and stitched on both sides by the vertical riser, so is surrounded by the vertical strap. It will not come off, ever. The horizontal strap usually has an included loop pocket for the LIMA flashlight, so if you're wearing the UBLX, you don't need the additional LIMA web frame and strap. The horizontal strap has 2" square cross-stitched hook and loop pads that wrap around the metal straps after mounting. The hook and loop is not what secures the UBLX to the sheath, the stainless steel flat straps are. The stainless steel flat straps are attached to the knife sheath at the welts with 8-32 thread stainless steel mechanical fasteners (button head cap screws, socket head cap screws, or Chicago screws). The hook and loop is a retainer for the diamond pad sharpener; the sharpener can't be removed unless the hook and loop are opened, and the hook and loop can't be opened unless the sheath is off the wearer. This insures that the wearer won't lose the sharpener. The hook and loop fold-over pad also serves as an accessory holder for items like my magnesium/firesteel fire block. Additionally, it creates a physical pad for the UBLX that rides against the body to prevent injury or chafing by the hard-faced sheath and metal straps and fasteners. By having the horizontal strap with the extra length of the 2" hook and loop pads, the owner is certain to have enough length to secure the stainless steel straps quickly and easily.
3. The cross-strap design and the vertical/horizontal components are extremely strong. They will not come apart, and can easily support the weight of several men. Most of the 2" strap used has breaking strength in excess of 4000 lbs. The polyester thread is thick, heavy, and strong, tightly multiple-row stitched. It's UV, sunlight, and mold/rot-resistant.

Page Topics

Mounting and Using the UBLX

The UBLX is an extender for the belt loop position, effectively lowering the knife with the handle at or below the belt line. The main reason for this is that when the die-formed aluminum belt loops are used, they can locate the knife in an uncomfortably high position, depending on the use, wearer, preferences, or mission. Also, some clients find reaching high up under their ribcage to unsheathe the knife difficult. Sometimes, sitting, crouching, or movement is inhibited when the knife rides high on the belt. Because this can sometimes be a problem, and knifemaking is about solving my client's problems, I've created and refined the UBLX over the years.

The UBLX mounts to the knife sheath. It's not carried; it doesn't hold, embrace, or coddle the knife and sheath with rope, cord, weak eyelets or any of the inferior contrivances used by most other knifemakers and all manufacturers. The sheath is firmly and solidly mounted to the UBLX with stainless steel machine screws. In rigidly mounting, the sheath is fixed to the web frame of the UBLX. The belt is threaded through the belt loop opening, and the sheath and knife are located to a lower position. By the way, the belt loop is fully enclosed and does not depend on stitching at the loop wear points. To wear out the belt loop means wearing through two layers of heavy duty polypropylene or mil-spec nylon webbing. The location and length of the accessory places the knife handle at or below the belt line. Longer EXBLXs and leg straps are detailed later on this page.

Because the sheath alone is mounted to the UBLX, the knife handle can move about and this can cause problems with the handle "flopping" around and away from the body. This is why all of my BLXs have anti-flop shock straps. These are wide elastic, ocky, or bungee, or in newer models, 1" wide webbing straps with acetyl buckles to prevent the knife handle from moving away from the body, keeping the assembly tight, close, and compact. When the knife is to be removed (unsheathed), the strap is either unsnapped, or unbuckled with a pinch of the fingertips, allowing the knife to be unlocked and removed from the sheath.

To Unsheathe the Knife:

1. The wearer first releases the anti-flop strap. Early models have an elastic strap with stainless steel dot-snap. On the latest models, a pinch of the acetyl buckle quickly releases it.
2. The wearer releases the sheath lock and pulls up on the knife handle. The UBLX resists collapsing because it has stiffeners either stitched into the vertical web riser (earlier models) or actual pieces of acrylic plate stiffener trapped in the webbing by stitching (later models).

To Sheath the Knife:

1. The knife is pushed into the sheath firmly, to engage the sheath lock for locking sheath versions 1.0 and 2.0. For hybrid tension models, he sheaths the knife and engages the ball-lock. He tugs up on the knife handle to make certain his knife is locked/secured in the sheath.
2. The anti-flop strap is snapped or buckled.

Some of the anti-flop shock straps are mounted at an angle, depending on the knife design (think tactical push/punch daggers or angled recurve-bladed knives).

The UBLX usually has a pocket for the LIMA accessory flashlight, and it's built right in, so the client does not have to wear the LIMA web frame and mounting strap if he's wearing the UBLX. Most of the UBLXs also have the sharpener pocket built in. To remove the sharpener, the sheath must be off the body, and the hook and loop pads opened; the sharpener cannot fall out or come out without the hook and loop opened.

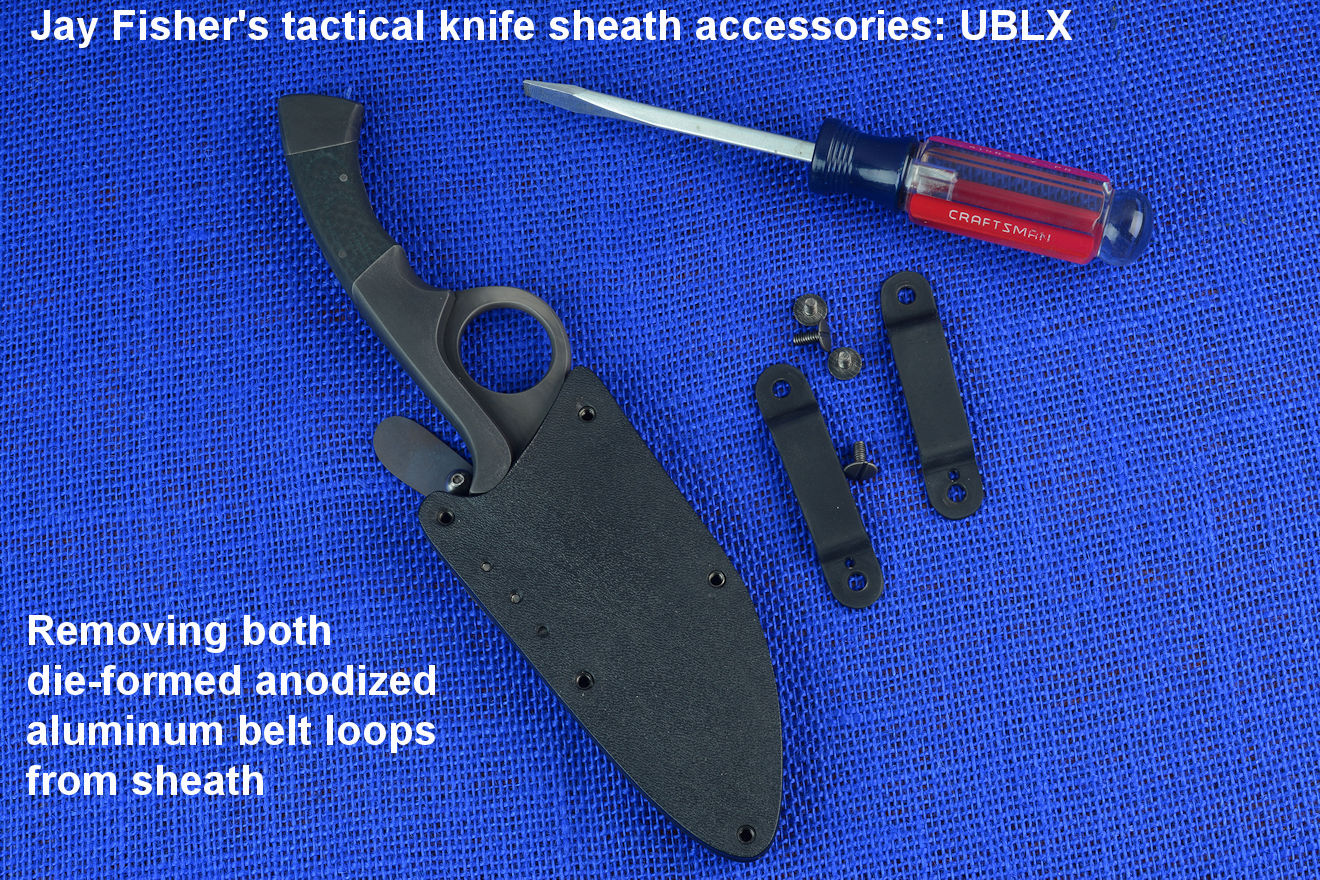

To mount the UBLX to the sheath using included hardware and fasteners, please look over the instructional photos below. They are pretty simple.

Slow and easy! The only thing to be very careful of is cross-threading the machine screws during assembly and change-out. All of the tactical knife sheaths I make have all stainless steel fasteners, and if they are started crooked and forced, they will lock up and be ruined. The simple rule is to start every screw by finger pressure first, before using a tool to tighten. Because they are stainless steel, they will never rust, corrode, or seize from exposure even in marine (salt water) environments.

In tightening, these accessories don't need to be super-tight like the head bolts on an engine. They aren't going to loosen and fall out; and just a bit tighter than finger pressure is all that is needed to secure them. I always include a large variety and length of fasteners for each kit; there will be one long enough to do the job. If it bottoms out in the long female Chicago screw, just use a bit shorter machine screw.

Page Topics

The EXBLX
The Extended Length Belt Loop Extender

When a United States Marine asks for a feature on a tactical combat knife, I listen carefully. The Marine carries a tremendous amount of gear, and these guys are strong, tough, and incredible warriors. However, the Corps has left them little room for a knife, and this requires some thinking for viable, worthwhile wearing options. This is why I now regularly make and provide the EXBLX in my kits.

This is the same idea as the belt loop extender, but it locates the knife even lower, to a low thigh position on the outside of the leg of the leading hand. I've made similar mounts before, but usually only for very long knives that have sheaths that are so long that they extend down the leg. With the EXBLX, even small knives are worn lower, at the side of the leg, just above the knee. The are secured like any of my tactical combat knives, with a positively locking or hybrid-tension-locking sheath, with the addition on the EXBLX of a wide leg strap.

Since the EXBLX is based on the design of thigh sheath mounts with leg straps, let's look over those to see what the issues are and how I've addressed them. The long sheath mount is very similar to the EXBLX.

Thigh Belt for Long Knives and Sheaths

For very long knife blades and a low-wearing location for shorter knives, I offer a reasonable, practical, and worthwhile solution for realistic wear. The problem with most of the long knife sheaths for this type of knife is that when the sheath is long, the bottom (tip) of the sheath can flop around. The same problem exists with mounting small knives lower on the thigh. The solution to this is to anchor the sheath to the thigh, just above the knee.

Other knifemakers and suppliers of this type of sheath are woefully inadequate, using lace, cord, or other straps to accomplish this critical job. That is simply not good enough, and here are the reasons why:

Problems with long knife sheath mounts and ties

• Lace is weak, thin, and short-lived. Leather is susceptible to rot, decay, and moisture penetration.
• Lace (particularly leather) can dry out, shrink, and crack in desert or dry locations or from age or sunlight exposure.
• Lace or cord will become soiled and most of it is not able to be cleaned. Leather will stain and stiffen, cord will stain and decay inside, since it can not breathe and quickly dry. Nylon (read Para cord) actually absorbs and holds water and everything in it, like salts, dirt, spores, fungus, mold, and chemicals!
• Lace or cord will dig into the thigh and leg; it will chafe, burn, and cause blisters.
• Lace or cord has to be constantly adjusted to changes in pant thickness, motion, activity and environment.
• Lace or cord attachment is only as strong as the lace or cord, specifically at the attachment point. If this is an eyelet, the eyelet is weak, thin, and seldom corrosion resistant. Know of any sheath made this way that even meets the minimum condition of having components made of stainless steel? No.
• The attachment method is only as strong as the sheath body and welts. A thin sheath here could allow tugging by the lace or cord, causing the knife to eventually cut through the sheath. Your leg is not where you want the point of a razor sharp knife (or even a dull knife) to ride!
• Lace or cord can slip around at the attachment point on the sheath, and that is where it will eventually rub in half.
• Tying and retying lace or cord is a time-consuming hassle, as adjustment is frequent. The tie is typically on the inside of the leg, where chafing and rubbing of the bulky knot will bother both legs!
• The lace or cord always has extra length (the tail) that extends past the knot. This tail can become trapped, snagged by objects, brush and obstacles, and can trip the wearer.
• Lace or cord has the potential to choke the leg like a garrote when snagged, twisted, or trapped. This can cut off circulation and can actually cut the skin on the leg open.
• Lace or cord can break, because it is narrow and weak.
• Lace or cord is not quickly or easily removed in an emergency. If the knot happens to bind (as all knots eventually do) it may take quite a while to pick loose and remove. If you have wet, muddy, or soiled hands or (God forbid) gloves, forget untying quickly. I suppose the sharp knife will come in handy here!
• Velcro® (hook and loop fastener) seems like a workable choice, but Velcro can easily come unhooked by brush, obstacles, and objects. Eventually, if exposed to dirt and debris, the Velcro hook and loop fastener can become soiled and will quit hooking, particularly since it will be worn low on the leg. Add to that the issue of noise. Velcro is very loud, the ripping and tearing when unhooking can give away your position, a dangerous and critical error in tactical combat use.

Page Topics

Solutions for thigh wear

How would the best leg and thigh strap work on a long-bladed or low-mounted knife sheath?

• My sheath is not secured with a thin strap or lace, but with a wide belt. The belt is made of polypropylene or mil-spec nylon, which is extremely long-lived and resistant to moisture, decay, or rot. All of the fittings are also impervious to moisture, rot, and decay.
• My belt material does not absorb water, and can breathe and dry out. It is impervious to most chemicals, salts, and exposures in a wide variety of locations. It is not affected by dryness or marine (salt spray) exposures.
• My webbing can be washed, dried, and regularly cleaned if needed.
• My 2" wide belt prevents point contact chafing and burning, and distributes the forces over a wide area, minimizing chafing and burning. It's comfortable and secure.
• My thigh belt has a tough, acetyl adjustment buckle that doesn't slip or change when you don't want it to. Once it's set for the pants you're wearing, it stays at that adjustment no matter how many times you don and doff (put on and take off) the knife sheath accessory.
• My thigh belt has a strong, permanent mounting with all corrosion resistant, heavy bearing mounts. It is all stainless steel, specifically 304 high nickel, high chromium stainless steel straps, Chicago screws (sex bolts) and machine screws. They are much stronger than carbon steel, they are completely corrosion resistant, waterproof, and require no care, ever. They are easily removable, but will not loosen or fall off.
• My mountings are secured through the 5052H32 high strength, corrosion-resistant aluminum alloy welt frame and through both layers of double-thickness kydex thermoformed plastic sheath faces. My sheathsd are the strongest made in the world for tactical combat and professional use, and have earned a well-deserved reputation. My sheaths will protect the wearer.
• Since the mounting of the thigh belt is with machine screws and straps of stainless steel, my appliance does not move or slide. There is no rubbing against mounts, no weak eyelets, no narrow contact points for wear or failure.
• Doffing should be and is easy and fast! Attaching and releasing of my thigh belts is done with acetyl buckles. It is quick and the belt length does not change unless you want it to. You can hike, remove the rig during a rest, and remount the accessory assured the belt is in the same position, location, and length as when you took it off.
• I include a buckle strap slide (tri-glide) made of super-tough acetyl that retains the loose end of the belt and keeps the end of the extra belt length clean, tidy, neat, and out of the way.
• My wide belt can not cut through pants or the leg. Pressure or force from the sheath movement is distributed over a wide, comfortable area.
• My thigh belt will not break; the buckles will support hundreds of pounds of pressure, and the webbing will support about 4000 pounds of pressure.
• In an emergency, a quick squeeze of the buckle will release my entire thigh belt. It's markedly faster than untying and can be done with wet, muddy, or soiled hands, even with gloves on!
• Because the buckle takes two fingers to squeeze, and because it is located at the front of the leg, brush or obstacles can not accidentally open my buckle or release the thigh belt. It is extremely secure.

To learn more, please look at the group of thumbnail photos of my thigh belt and wear demonstration below.

Page Topics

From the thigh belt to the EXBLX

From the development of the thigh strap, it wasn't hard to realize that to lower a smaller knife to a comfortable area on the leg, simply lengthening my UBLX was the answer. It's mounted just like the UBLX, and has the same pocket for the LIMA flashlight accessory. Once the 2" wide and comfortable leg strap is adjusted and set, it can buckle on and off easily and be fixed at the same size. No tying and untying. No narrow, dangerous, and painful lines, cord, or thongs.

The EXBLX fits anyone with an inseam from 32" on up. For special sizes and lengths I'm happy to build these, since they are custom to the knife.

Page Topics

Care of the Belt Loop Extenders

As described above, these accessories are made of polypropylene, polyester, or Mil-spec nylon and are extremely durable. They can be washed with plain water, or soap water for stubborn dirt, or even hosed off with a garden hose. Remove them from the sheath first, let them hang and air dry.

The fasteners, hardware, machine screws, and straps require little care: wash off stubborn dirt or debris, check to make sure the threads are not damaged. They are all stainless steel, even the blackened and coyote models, so there is little concern whatever!

Wow: how simple is that?

Page Topics

Directions, Future

Just like my knives, my sheaths and accessories continually evolve. This is how it should be. I look forward to making any improvements my clients desire, and their input is always welcome. I can't know the range of exposure and missions that they will have in the future, but I'm committed to work with them to make the finest knives, sheaths and accessories possible.
